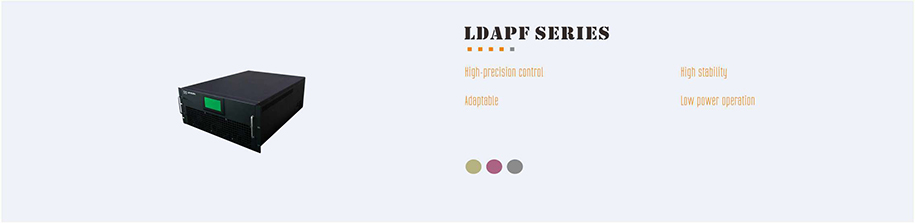

LDAPF adopts a modular design.Each module unit operates independently and intelligently allocates compensation capacity; any module is automatically returned after failure, and the remaining modules are automatically allocated compensation capacity.According to the N + 1 redundancy theory, each level of redundancy of the equipment can ensure reliability. Improve an order of magnitude; the modular structure is particularly suitable for load occasions with higher reliability requirements; at the same time, it can be used in conjunction with third-party passive compensation products, which can comprehensively consider compensation accuracy and cost, save investment, and achieve cost-effective power quality Governance system.
.
Technical Parameters
.
|
Rated voltage（V） |
AC380±20% |
|
Working frequency（Hz） |
50±5 |
|
Electrical connections |
Three-phase three-wire / three-phase four-wire |
|
Power topology |
Three level |
|
Single module compensation capacity |
50A 100A 150A |
|
CT |
150/5-10000/5 |
|
Harmonic compensation |
Stand by |
|
Filtering range |
2 ~ 50th harmonic, compensation can be set for each harmonic |
|
Filtering ability |
＞90% |
|
Reactive power compensation |
Supports capacitive inductive reactive power continuous compensation |
|
Unbalance compensation |
Stand by |
|
Response time |
＜5ms |
|
Machine efficiency |
＞97% |
|
Multiple parallel operation |
Parallel operation, maximum 6 parallel units |
|
Protective function |
Over and under voltage protection, short circuit protection, over temperature protection, over compensation protection, self-test protection, etc. |
|
Operating frequency（Hz） |
20kHz |
|
Control algorithm |
Instantaneous reactive power, FFT, symmetrical component method, direct current control, etc. |
|
Controller |
Dual DSP + FPGA full digital controller |
|
Communication function |
Adopt Modbus communication protocol, support simultaneous monitoring of on-site and remote computers (Rs485), can expand CAN bus, network communication interface, WiFi |
|
Installation method |
Rack-mounted / wall-mounted |
|
Protection class |
Ip30 or customized according to user requirements |
|
Cooling method |
Forced air cooling |
|
Ambient temperature |
-15℃~+40℃ |
|
Relative humidity |
max, no condensation |
|
Altitude |
Installation altitude is less than 2000 meters, between 2000 and 4000m, capacity increases by 1% for every 100m increase |
.

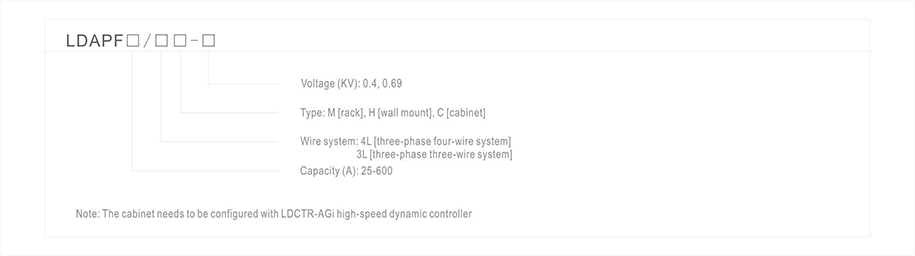

Model definition
.
