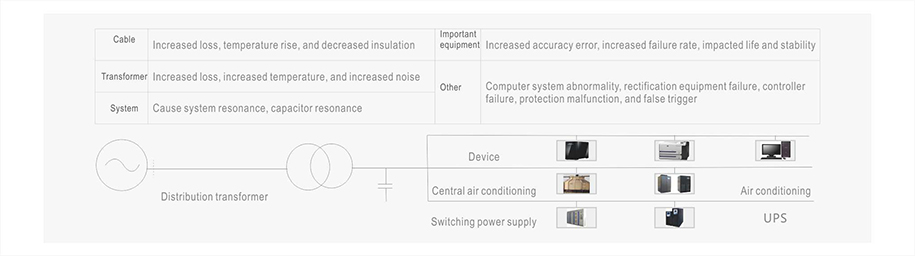

Power quality is an index system that measures whether consumers use electricity to cause pollution to the power grid. It directly affects the safety, reliability, and economics of both power suppliers and consumers. The main factors affecting power quality are harmonics, reactive power, three-phase imbalance, voltage fluctuations, and flicker. Power filtering technology and power factor correction technology have created conditions for improving power quality, saving user investment and ensuring rapid return on investment.
For ordinary loads, the anti-resonant reactive power compensation management of contactor switching is adopted. For the fast and convenient loads, the anti-harmonic reactive power compensation management of thyristor switching is adopted. For the loads with harmonics and fast transients, TSVG or TAPF。

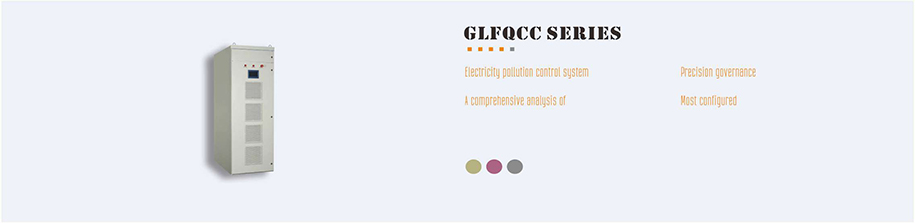

Comprehensive power quality management device
.
GLFQCC diànnéng zhìliàng zònghé zhìlǐ zhuāngzhì zhuāngzhì rónghéle dòngtài wú yuán lǜbō jìshù hé yǒu yuán xié bō bǔcháng jìshù, shíshí jiǎncè diànwǎng zhōng de gè cì xié bō hé wú gōng gōnglǜ, nénggòu duì diànróng,APF hé SVG shíshí kòngzhì. Jùyǒu lǜbō róngliàng dà, lǜbō fànwéi guǎng, lǜbō xiàolǜ gāo, shìshí gēnzōng hé xiǎngyìng de tèdiǎn, kě gāoxiào lǜ chú fùzǎi xié bō, yìzhì xìtǒng zhèndàng, tígāo diànwǎng de wěndìng xìng, tóngshí qǔdé míngxiǎn de jiénéng jiàng hào hé gōngdiàn shèbèi zēng róng de xiàoguǒ, jùyǒu jiào qiáng de gōngchéng shíyòng xìng hé hěn gāo de chǎnpǐn xìngjiàbǐ. GLFQCC bāohán dòngtài lǜbō bǔcháng mókuài yǔ zònghé diànnéng zhìliàng tiáokòng zhuāngzhì èr bùfèn, gòngtóng chéngdān wú gōng bǔcháng yǔ xié bō zhìlǐ de rènwù. Bāokuò duō zǔ dān tiáoxié zhī lù jí gāotōng zhī lù, zhǔyào xīshōu tèzhēng dīpín cì de fùzǎi xié bō diànliú, jué dà bùfèn de fùzǎi xié bō diànliú déyǐ lǜ chú. Dádào shuāngxiàng liánxù dān xiàng de gāoxiào wú gōng bǔcháng, yǒuxiào gǎishàn xìtǒng de sān xiàng bù pínghéng. ●Xínghào dìngyì 展开 324/5000 The GLFQCC power quality comprehensive treatment device integrates dynamic passive filtering technology and active harmonic compensation technology. It detects real-time harmonics and reactive power in the power grid and can control capacitors, APF and SVG in real time. It has the characteristics of large filtering capacity, wide filtering range, high filtering efficiency, and timely tracking and response, which can efficiently filter load harmonics, suppress system oscillation, and improve the stability of the power grid. Effect, with strong engineering practicability and high cost performance. GLFQCC includes a dynamic filter compensation module and a comprehensive power quality control device, which jointly undertake the tasks of reactive power compensation and harmonic control. It includes multiple groups of single-tuned branches and high-pass branches, which mainly absorb characteristic low-frequency load harmonic currents, and most of the load harmonic currents are filtered. It achieves two-way continuous single-phase efficient reactive power compensation and effectively improves the three-phase imbalance of the system.
● Model definition
.
Harmonic protector
.
LDHR type harmonic protector has a strong ability to eliminate the harmonic interference of various frequencies and various loads. It has a wide application frequency band and shows high response speed and instantaneous elimination in anti-surge and instantaneous pulses. These characteristics of frequency noise and instantaneous interference are suitable for non-linear load occasions such as various high-tech equipment, pipeline automatic control systems, large-scale computer network systems, digital signal processing and switching and control systems.
