Static Var Generator refers to a free-commuting power semiconductor bridge converter to generate and absorb reactive power, a reactive power dynamic compensation device. Traditional reactive power compensation equipment has the advantages of high reliability, inductive capacitive reactive power two-way compensation, and high cost performance.
Technical Parameters
.
|
Rated voltage |
Ac380±20%，50±5Hz |
|
Electrical connections |
Three-phase three-wire / three-phase four-wire; CT requirements 150 / 5~10000 / 5 |
|
Power topology |
Three level |
|
Compensation function |
Capacitive and inductive reactive power continuous compensation, can set the target power factor (-1 ~ 1); harmonic compensation; unbalance compensation |
|
Time and efficiency |
＜5ms；＞97% |
|
Multiple parallel operation |
Parallel operation, maximum 6 parallel units |
|
Protective function |
Over and under voltage protection, short circuit protection, over temperature protection, over compensation protection, self-test protection, etc. |
|
Operating frequency |
20kHz |
|
Control algorithm |
Instantaneous reactive power, FFT, symmetrical component method, direct current control, etc. |
|
Controller |
Dual DSP + FPGA full digital controller |
|
Communication function |
Adopt Modbus communication protocol, support simultaneous monitoring of on-site and remote computers (Rs485), can expand CAN bus, network communication interface, WiFi |
|
Protection class |
Ip30 or customized according to user requirements |
|
Surroundings |
Forced air cooling; -15 ℃ ~ + 40 ℃; maximum 90%, non-condensing; altitude less than 2000 meters, between 2000 ~4000m, each increase of 100m, capacity decreases by 1% |
.

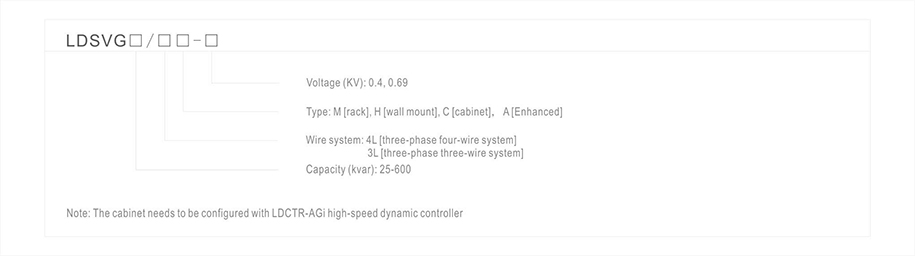

Model definition
.
